Desiccant air dryer
Working conditions and design parameters

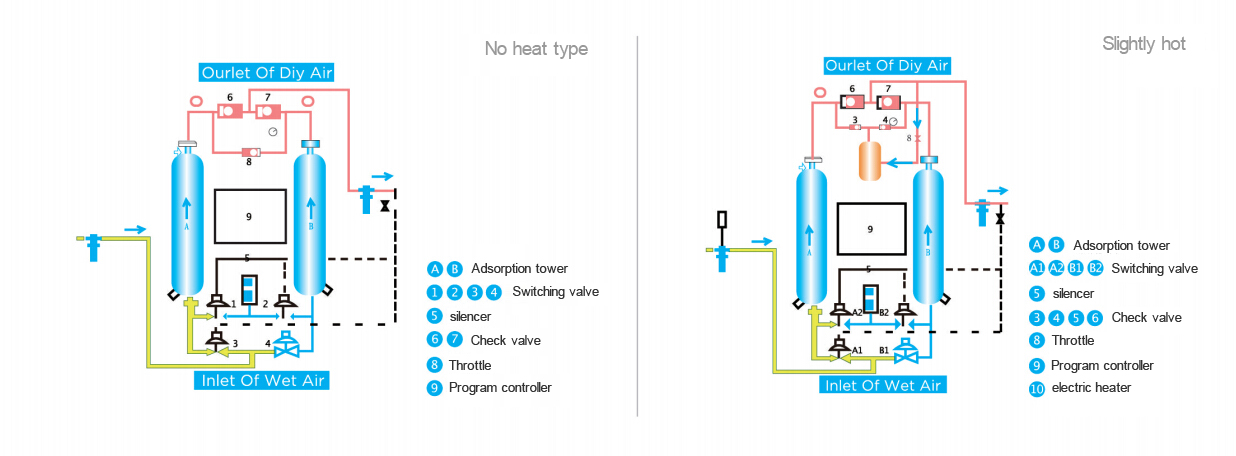

Heatless desiccant air dryer utilizes the micropores of the desiccant itself to adsorb moisture in the air through the capillary tube, desorb it through the pressure drop, and adsorb excess heat. At present, the equipment consists of two towers, controlled by a program controller. The two towers work alternately, one for adsorption and the other for desorption, so that the cycle can continue to work.
-
Regeneration gas volume: ≤12-15%
Intake oil content: ≤0.01ppm
Work cycle: T=4-20 minutes
Voltage: 220V/50Hz
-
Intake air temperature: 0℃-45℃
Working pressure: 6-10bar
Pressure dew point: -20℃-40℃
Dryer: activated alumina or molecular sieve
